FM Transmitter With 9 Volt Battery

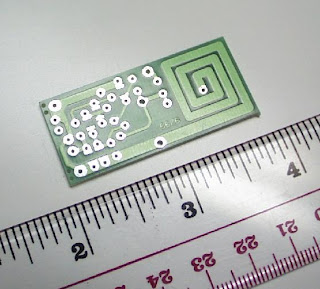

type="html">This new FM Transmitter Kit can transmit over 900 feet in the open depending on aerial used with 9 volt battery. The tank oscillator coil is built into the circuit board, and has been tinkered with to give the best distance and stability for it's size. The battery supply rails have been well tied together with respect to radio frequencies.

The tracks are also thicker making the fm transmitter circuit a single ‘solid’ block eliminating RF currents in different parts of the circuit. This also means the battery no longer has RF on it which makes the whole unit a lot more frequency stable. Can be tuned anywhere in FM band.

* L: 1-3/4" W: 7/8" H: 1/2"
* Requires 9 Volt Battery
* Transmission frequency is user selectable.
* Transmitter can be listened to on any FM radio.

Download kit manual for complete details, including schematic and theory of operation. Visit Page
